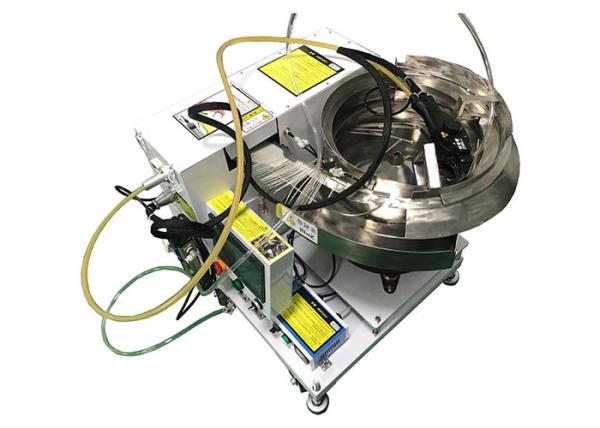

Bundle Force 8kg Nylon Cable Tie Machine For Cable Harness Assembly
1. Easy handheld zip tie gun. It is actived by pushing the trigger in tie gun.
2. Take 0.7S to finish cable tie tightening and cuttting.
3. Easy adjust the binding forces.
Specifications of automatic cable tie machine
| 1. Automatic cable tie machine | |
| Model | SWT25100H |
| Bundle speed | 0.7S per cable tie, not including the time of picking and placing objects. |
| Bundle productivity | 2400pcs - 3600pcs cable ties |
| Applicant cable ties | T25100 |
| Length of cable tie | 100mm |
| Head size of cable ties | L4.8*W4.8*H3.8mm |
| Applicant bundle diameters for wire | Ø2mm – Ø18mm |
| Applicant bundle diameters for tubes | Ø2mm – Ø16mm |
| Machine size | L670 * W660 * H670mm |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 0.5Mpa |
| 2. Trading information | |
| Seaport | Shenzhen, Guangzhou, or other place |
| Lead time | 12working days |
| Packing | Packed in wooden cases |
| Transport ways | By sea, air, or DHL. |
Features of nylon cable tie machine
1. Using nylon cable ties, 2.5 * 100mm. Different cable ties, different nylon cable tie machine.
2. Using handheld tie gun to bundle, it is neat and beautiful.
3. The binding diameters, 2mm to 18mm. Operater doesn't have to adjust it.
4. It is easy to handle. There are PLC control system and touch screen. And the zip tie gun starts to work once pulling the trigger.
5. The bindind forces are adjustable, from 2kg to 8kg.
6. The bundle speed is faster, about 0.7S. Finishing single cable tie takes less then 1.5S. Operator can bundle 2400pcs or more in one hour.
7. Voltage: AC220V, 50/60Hz and Pneumatic pressure: 5kg/cm²
Advantage of automatic cable tie machine
1. SWT25100H cable tie tightening tool is stable and quickly.
2. The waste material would be collected into a box. Keep factory clean!
3. Our factory has more than 10 years experiences on automatic cable tie machines.
Applications
It is suitable for quickly tying nylon cable ties to wire harnesses, such as wire harness arrangement on tooling boards, internal wire harness binding of household appliances, etc.
It is widely used in household appliances, food packaging, medical accessories and other industries.
Packing info
Automatic cable tie machines would be packed in wooden cases.
| Item | Packing size/wooden case |
| Host machine *1 | 75*70*84cm G.W./kg: 98kg |
| Handheld cable tie gun *1 |
| Tool kit * 1 |
| English manual *1 |
| Vibration bowl * 1 | 68*55*62cm G.W./kg: 67kg |
FAQ
1. Can I just buy the handheld cable tie gun?
No, you can’t. The tie gun can’t work alone.
2. Do you have a tie gun with battery?
No, we don’t have.
3. Is it ok to use other brand cable ties in SWIFT cable tie machines?
It depends on cable ties' quality. If they are suitable to use in auto cable tie machine, we could customize one based on other cabel ties.
